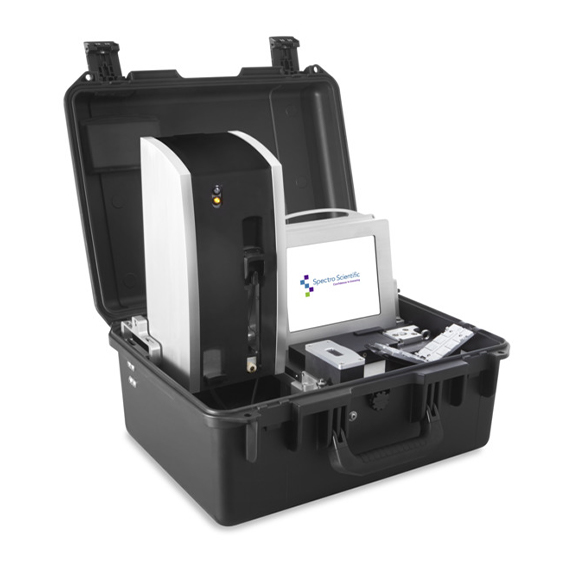

The Spectro FieldLab 58 is a rugged, portable expeditionary fluid analysis system that gives operators in the field the ability to perform comprehensive, mobile lubricant sampling.
The battery-powered device enables complete lubricant assessment for condition monitoring and rapid results that permit informed maintenance decisions. It takes only 3 ml of oil to perform a comprehensive oil analysis and no chemicals or solvents are needed for sample preparation or cleaning. The complete analysis, with all four tests, only takes about 5 – 7 minutes, depending on oil viscosity.
Spectro FieldLab 58


Instrument OS
SQL database on Windows CE
Fixed-angle 7” color touch screen display
Battery Power Source
Lithium-ion battery pack
48 cm (L) x 39 cm (W) x 23 cm (H); 19.2” x 15.2” x 9”
16.5 kg (36.4 lbs);
Factory, verification standards: NIST traceable


  • Rugged design with battery power for
  • on-site field use
  • No solvents or chemicals required
  • Complete oil analysis lab with 4 technologies
  • integrated into a small case
  • – X-Ray Florescence (XRF)
  • 4 tests generate more than 20 oil analysis
  • parameters in 5 to 7 minutes
  • Built-in controller for measurement, data,
  • and asset with touch screen interface
