Vanessa Triple Offset Valves Vanessa Triple Offset Valves

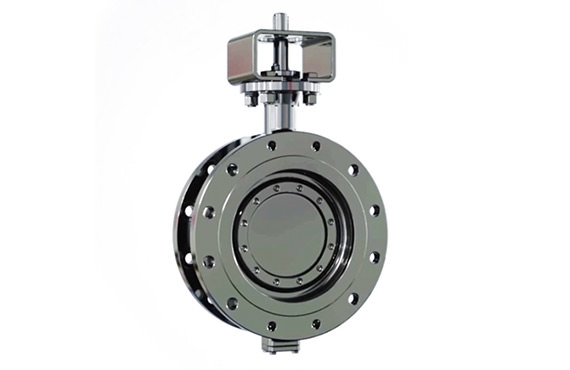

Lower CAPEX and Lifecycle Costs

Lower CAPEX and Lifecycle Costs

  • When your objective is to lower costs, while at the same time improving production, finding better performing products and components is a key priority.
  • Increase the safety levels of your facility while lowering the overall cost of ownership.
  • Reduce the time for unscheduled maintenance, making a significant impact to overall plant productivity.
watch videos

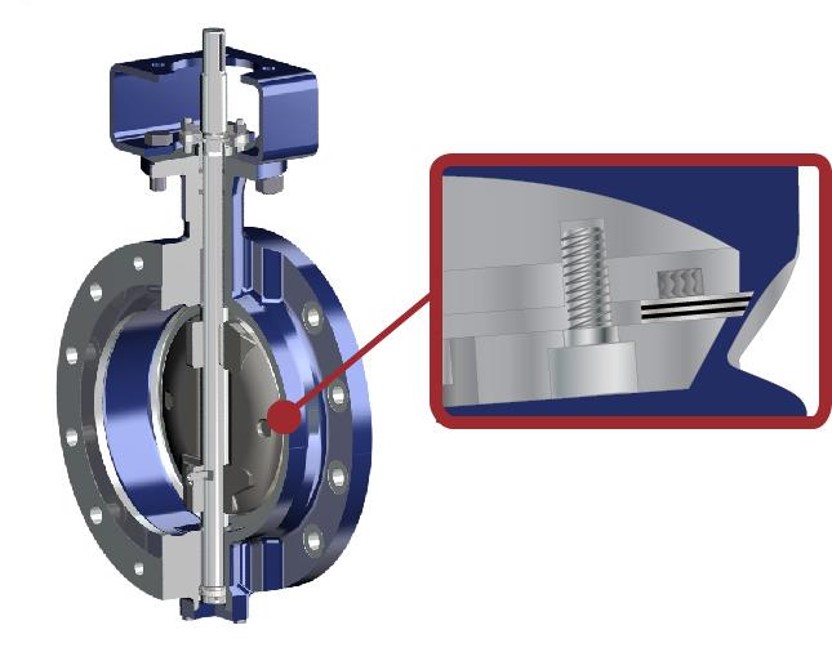

Vanessa Triple Offset Design

Vanessa Triple Offset Design

  • The purpose of the first offset is to have a continuous path
  • The second offset allows the displacement of the seal from the seat during the 90o opening
  • The third offset completely eliminates rubbing - the key contributor to the zero leakage performance of the valve

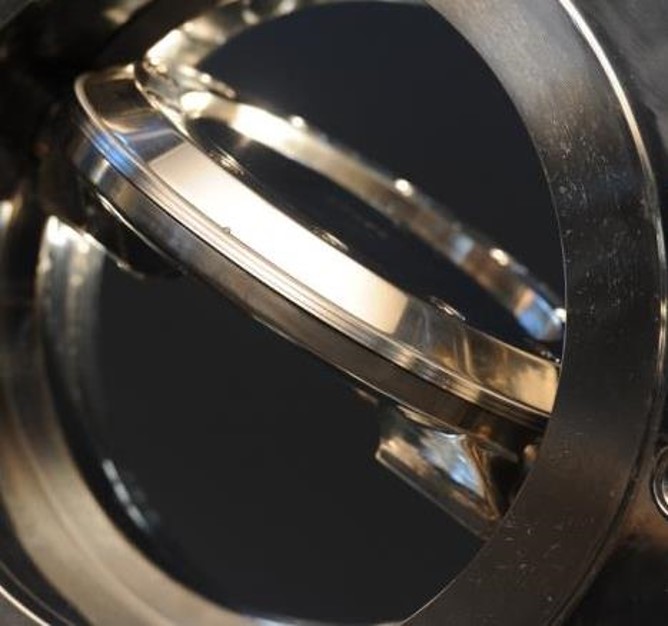

Reliable and Robust Zero Leakage Seating

Reliable and Robust Zero Leakage Seating

  • Vanessa disc is not the sealing element, only the carrier of the sealing ring
  • Metal-to-metal, torqued seating
  • Vanessa exclusively uses Stellite grade 21 on seats to achieve higher resistance to galling, abrasion, erosion, and corrosion
  • All metal construction makes Vanessa inherently fire-resistant
  • Non-rubbing 90o rotation means lower and consistent running torque

Vanessa Family of Products

Vanessa Series 30,000 (Basic Configuration)
Emerson
Vanessa Triple Offset Valves
Vanessa Series 30,000 (Basic Configuration)
Vanessa Series 30,000 (Cryogenic Configuration)
Emerson
Vanessa Triple Offset Valves
Vanessa Series 30,000 (Cryogenic Configuration)
