The ICX35-HWC Industrial Cellular Gateway is used for any remote connectivity applications like remote access, SCADA connectivity to remote sites, or M2M communications.

It is the ideal communications solution for systems integrators and OEMs that need to monitor devices that are in hard-to-reach spots. With the ICX35-HWC, the user can monitor and troubleshoot devices from anywhere in the world over 4G LTE cellular connections, with fallback to 3G or by using the on-board Ethernet port as a WAN/LAN port.

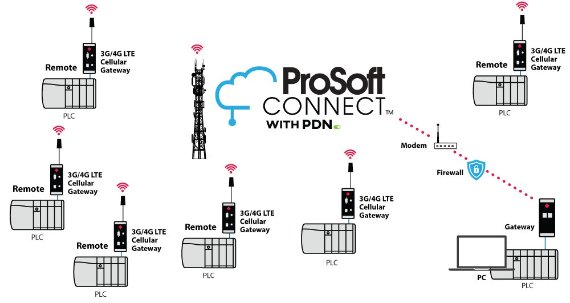

Ubiquitous and reliable cellular coverage allows the ICX35-HWC to be used to connect geographically dispersed sites for SCADA and telemetry applications.

The ICX35-HWC uses a multi-layered approach (Defense-In-Depth) to security. These include 256-bit AES encryption and one time use tunnel credentials, to name a few. It supports SMS for alarm management.

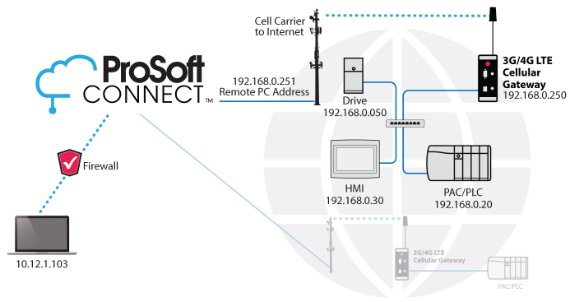

The ICX35-HWC can also be monitored through ProSoft Connect. This is ProSoft Technology’s secure, cloud-native platform for the Industrial Internet of Things. This service can be accessed anytime, anywhere in the world, offering the user an intuitive Web interface to monitor their automation devices in real time.

The gateway supports OpenVPN connectivity to dual servers for redundancy.

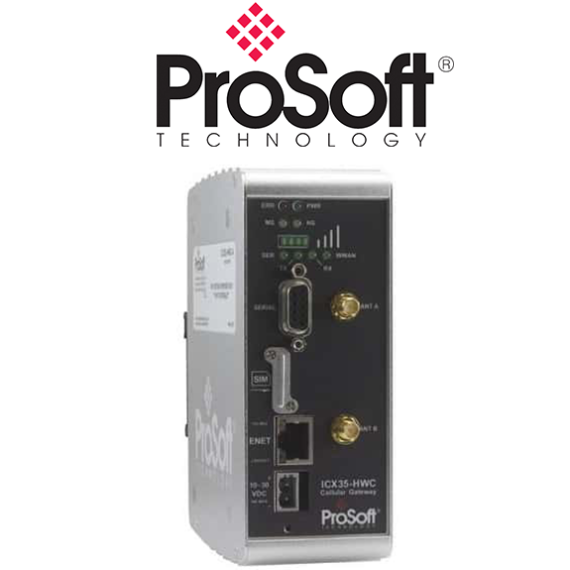

ProSoft ICX35-HWC Industrial Cellular Gateway


Cellular Technology
Extruded aluminum with DIN clip
Dimensions (H x W x D)
5.52 x 2.06 x 4.37 in
14.01 x 5.24 x 11.09 cm
Ethernet Port
(1) 10/100 Base-T, RJ45 connector
Serial Port
(1) DB9 female (serial tunneling & encapsulation)
Antenna Ports
(2) Female RP-SMA connector
Antenna(s) sold separately
Operating Temperature
-40°F to +158°F (-40°C to +70°C)
5% to 95%, with no condensation
External Power
10 to 30 VDC


  • Verizon™, AT&T® and PTCRB (global) Certified
  • EtherNet/IP and Modbus TCP/IP support. Your PAC/PLC can easily read diagnostic data from the gateway
  • Integrates with ProSoft Connect™, ProSoft Technology’s secure, cloud-native platform for the Industrial Internet of Things
  • IP Whitelisting: Specifies which end device IP addresses can be accessed
  • Ethernet port can be configured as a LAN/WAN port – wired or wireless connection to ProSoft Connect™
  • Virtual Lockout, Tagout (vLOTO™) when creating secure remote access connection through ProSoft Connect™
  • Port forwarding: 10 entries maximum
  • Supports SMS messaging from your PAC/PLC using EtherNet/IP or Modbus TCP/IP
  • Secure single or dual OpenVPN connections over Internet and cellular links for remote site access to corporate networks
  • Supports NTP client and server functionalities
  • Built-in web server for local/remote configuration, monitoring and wireless network diagnostics
